Graco SlimFit3 LX Review 2025 – The Slimmest All-in-One Car Seat Tested

The Graco SlimFit 3LX is a versatile 3-in-1 car seat designed for growing children, offering rear-facing, forward-facing, and highback booster modes. With its slim profile, it fits comfortably in most vehicles, making it ideal for 3-across seating. Parents love its adjustable recline, no-rethread harness, and energy-absorbing EPS foam for added safety.

This car seat also features steel-reinforced construction, removable cup holders, and a machine-washable Rapid Remove™ cover for convenience. With a 10-year lifespan and easy installation options using seat belt or LATCH, the SlimFit 3LX combines safety, comfort, and practicality. Its stylish designs and compact size make it a popular choice for modern families.

WEIGHT & HEIGHT LIMITS:

• Rear-facing: 5 – 40 lbs and child’s head must be at least 1″ below the height adjustment handle
• Forward-facing: 26.5 – 65 lbs and child 49″ or shorter
• Highback booster: 40 – 100 lbs
• Highback booster height range: 43″ – 57″
• Booster minimum age: At least 4 years old

SLIMFIT3 LX OVERVIEW:

• Adjustable base with 2 rear-facing recline positions
• 2 forward-facing recline positions plus 1 booster recline position
• No-rethread harness with 10-position adjustable headrest
• Easy-to-read ball level indicator on each side for proper recline
• Energy-absorbing EPS foam for added impact protection
• Seatbelt lockoff for secure forward-facing installation
• On-board harness storage for booster mode convenience
• Steel-reinforced frame for strength and durability
• Two optional cup holders (removable)
• Machine-washable Rapid Remove™ cover with a 10-year lifespan before expiration

TRUE3FIT LX

• Includes a rear-facing anti-rebound bar for added crash stability
• Narrow space-saving design ideal for tight back seats and 3-across setups
• All-in-one car seat: rear-facing, forward-facing, and highback booster modes
• No-rethread harness system with a multi-level adjustable headrest
• Built-in recline options for rear-facing, forward-facing, and booster use
• EPS energy-managing foam for enhanced impact protection
• Forward-facing belt lockoff for secure seat-belt installation
• Steel-reinforced internal frame for long-term durability
• Removable cup holders to save space when needed
• Walmart-exclusive model with unique fabric styling and a 10-year usable life

SlimFit3 LX vs True3Fit LX

The SlimFit3 LX and True3Fit LX are built on the same all-in-one platform, offering identical weight limits, recline options, harness system, and slim profile. In everyday use, both seats perform the same across rear-facing, forward-facing, and high-back booster modes.

The main functional difference is that the True3Fit LX includes a rear-facing anti-rebound bar, which adds an extra layer of stability by reducing movement in a crash. It also comes with a different fabric style, while the SlimFit3 LX does not include the anti-rebound bar.

Another key distinction is availability. The True3Fit LX is currently a Walmart-exclusive model with its own branding, while the SlimFit3 LX is sold through multiple retailers. Aside from the anti-rebound bar and styling, the two seats are otherwise completely identical.

SLIMFIT3 LX MEASUREMENTS:

• Minimum harness height: 7″ with infant insert
• Minimum harness height: 8″ without infant insert
• Maximum harness height: 17.75″
• Shoulder belt guide height: 19.5″
• External widest point: 16.5″
• Shell height (with headrest): 30.25″
• Shoulder width: 14″
• Crotch strap depth (inner slot): 3″ with infant insert
• Crotch strap depth (inner slot): 3¼″ without insert
• Crotch strap depth (middle slot): 5″ without insert
• Crotch strap depth (outer slot): 6″ without insert
• Seat depth: 12″

3-Across Advice

Fitting three car seats across a back seat can be tricky, but the SlimFit3 LX handles it well due to its slim 16.5″ width. Touching between seats is fine, but overlap isn’t allowed, as it can interfere with proper installation. Removing the cup holders can make positioning easier in tight spaces.

Seatbelt installation is preferred for 3-across setups because the LATCH connectors limit placement options. With the seatbelt, you can slightly shift the car seat left or right to achieve a better fit, which is especially helpful when arranging multiple seats side by side.

For booster use, it’s best to keep children in the 5-point harness until they reach the maximum height or weight. This makes buckling easier when highback boosters are next to other car seats and avoids daily struggles trying to thread seatbelts over the booster.

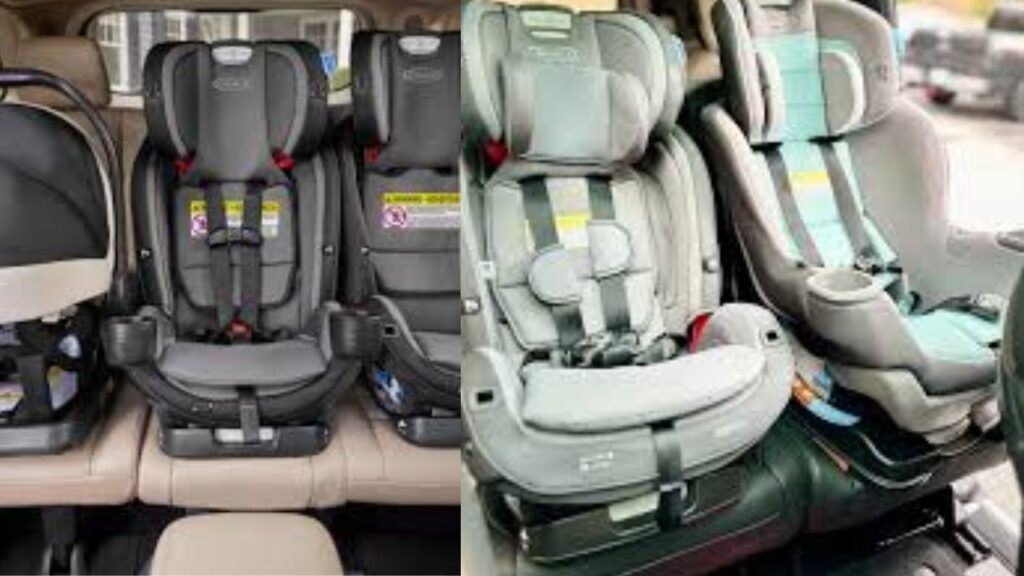

Three-Across Rules for the SlimFit3 LX/True3Fit LX – Straight from Graco:

Here are the Three-Across Rules for the SlimFit3 LX/True3Fit LX in 5 bullet points:

• Touching between car seats is allowed, but overlapping is not permitted.
• Remove cup holders if they interfere with seat placement.
• Center LATCH installations are not recommended unless your vehicle has 11″ lower anchor spacing.
• Use seatbelt installation for flexibility in positioning multiple seats side by side.
• Proper spacing ensures each seat is installed securely without interference.

Installing three car seats across a back seat requires careful planning. SlimFit3 LX and True3Fit LX are slim enough to make this possible in many vehicles, but overlap can prevent proper installation and compromise safety.

Removing the optional cup holders can give just enough extra space for seats to sit flush without touching each other. This small adjustment can make a big difference in a tight fit.

Graco prefers seatbelt installation for 3-across setups because LATCH connectors have limited spacing. Seatbelts allow you to shift the seat slightly left or right to achieve a snug and secure fit.

Always check your vehicle’s specifications for center LATCH spacing. Only seats with standard 11″ lower anchors can safely use the center LATCH position, otherwise seatbelt installation is safer.

Ensure that all seats are properly reclined according to the child’s weight and height. The SlimFit3 LX offers multiple recline positions to accommodate rear-facing, forward-facing, and booster modes.

Maintaining proper spacing between the seats prevents interference with buckles and harnesses. This ensures that each child is safely secured without complications during daily use.

Following these rules makes three-across seating safer and more manageable. It reduces struggles when buckling in children, avoids unnecessary wear on the seats, and ensures compliance with Graco’s installation guidelines.

INSTALLATION:

Rear-Facing Installation

• Choose recline position: Select either of the two rear-facing reclines to achieve proper angle. Adjust until the level indicator shows correct placement.
• Prepare base and belt path: Unsnap the bottom cover to access the rear-facing belt path. Ensure the path is clear and free of obstructions.
• Position car seat: Place the seat in the vehicle’s rear-facing position. Center placement is ideal for 3-across, if possible.
• Thread seatbelt: Pull the vehicle seatbelt through the rear-facing belt path. Keep shoulder belt snug while feeding into the retractor.
• Lock seatbelt: Lock the seatbelt according to vehicle type. Most post-1996 vehicles lock by fully extending and retracting the belt slowly.
• Check recline and level: Adjust the base and car seat to make sure the seat is properly reclined. Verify with the ball level indicator on both sides.
• Secure harness and final check: Ensure the 5-point harness is properly installed and the child fits snugly. Double-check tightness and that the seat doesn’t move more than 1 inch side-to-side.

Forward-Facing Installation

• Select recline position: Choose one of the two forward-facing reclines for your child’s comfort. Adjust until the seat sits securely against the vehicle seat.
• Lift backrest cover: Open the backrest cover to access the forward-facing belt path. Ensure the path is clear for easy seatbelt threading.
• Position car seat: Place the seat in the vehicle’s forward-facing position. Make sure it sits flush against the backrest.
• Thread seatbelt: Pull the vehicle seatbelt through the forward-facing belt path. Use the lockoff to secure the belt tightly.
• Lock seatbelt: Engage the belt lock to prevent slack. The seat should not move more than 1 inch side-to-side or front-to-back.
• Attach LATCH (optional): If using LATCH, slide connectors under the metal bar and tighten. Follow weight limits: RF 40 lbs, FF 45 lbs.
• Check harness and final fit: Make sure the 5-point harness fits your child snugly. Adjust straps and chest clip to proper height for safety.

Booster Installation

• Recline seat first: Set the seat to the booster recline position. This makes harness storage and belt positioning easier.
• Store harness: Place the 5-point harness in the onboard storage compartment. Only the chest clip and buckle tongs remain accessible.
• Position seat: Place the booster on the vehicle seat. Ensure it sits flat and stable against the vehicle backrest.
• Thread seatbelt: Pull the vehicle seatbelt through the booster belt guides. Check that the lap belt rests low on the child’s hips.
• Lock seatbelt: Engage the seatbelt lock if required. Ensure the belt is tight and properly routed over the guides.
• Check LATCH compatibility: LATCH can secure the booster up to 100 lbs. Store connectors under the child’s thighs if they interfere with the belt.
• Final safety check: Confirm the booster is stable and the seatbelt fits snugly. Adjust seatbelt positioning for proper highback booster fit.

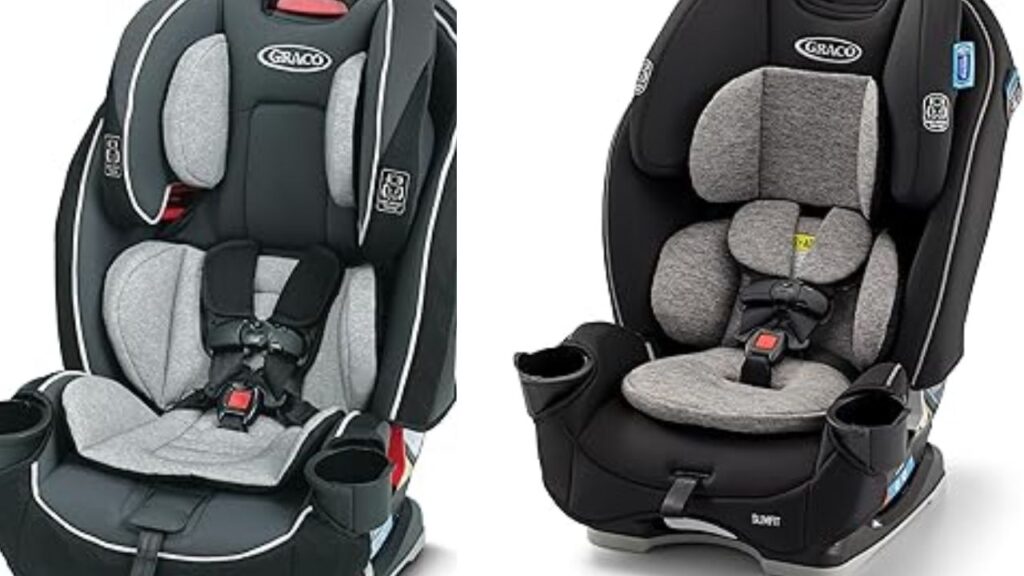

Graco SlimFit 3-in-1

The Graco SlimFit 3-in-1 is a versatile car seat designed to grow with your child. It functions as a rear-facing, forward-facing, and highback booster seat, covering a wide range of ages and weights.

Its slim design makes it perfect for smaller vehicles or 3-across seating arrangements. Despite its narrow width, it doesn’t compromise on safety or comfort.

The seat features a no-rethread harness with 10-position adjustable headrest, ensuring the perfect fit as your child grows. Energy-absorbing EPS foam adds an extra layer of protection during impacts.

Parents appreciate the easy-to-clean cover and removable cup holders. With a 10-year lifespan, the SlimFit 3-in-1 is a long-term investment in safety and convenience.

Graco 3-in-1 Slim Fit

The Graco 3-in-1 Slim Fit emphasizes a space-saving design without sacrificing essential safety features. It is ideal for families needing a compact solution for multiple car seats.

Like the SlimFit 3-in-1, this model also functions in three modes—rear-facing, forward-facing, and highback booster—making it versatile for different stages of child growth.

Safety features include a steel-reinforced frame, seatbelt lockoff, and multiple recline positions. These elements ensure secure installation and a comfortable ride.

Its modern aesthetics and optional cup holders appeal to parents looking for both style and practicality. The slim profile makes installation in tight spaces much easier.

PUTTING THE SLIMFIT3 TO THE TEST:

The SlimFit3 LX was tested across multiple vehicles with the help of Certified Passenger Safety Technicians. Installation was generally smooth thanks to its wide belt paths, even in tight back seats. The slim 16.5″ width proved ideal for 3-across setups in midsize SUVs and sedans.

Rear-facing installation offered stable recline options, and the level indicators made it easy to ensure proper angle. Seatbelt installation allowed slight adjustments left or right, which was crucial for fitting three seats side by side. The anti-rebound feature on the True3Fit LX added extra rear-facing stability in test vehicles.

Forward-facing and booster modes were equally practical. The onboard harness storage simplified the transition to booster use, and the seatbelt guides ensured proper belt positioning. Overall, the SlimFit3 LX proved versatile, comfortable, and highly adaptable across different vehicle configurations.

Front Passenger | Middle | Driver Side

Front Passenger | Center | Driver Side

ICS = Graco SnugRide SnugLock 35

HBB = Graco TurboBooster Highback

RF = SlimFit3 LX Rear-Facing

FF = SlimFit3 LX Forward-Facing

HBB = SlimFit3 LX Highback Booster

2020 Ford Explorer 2nd Row

In the second row of the 2020 Ford Explorer, the SlimFit3 LX proved highly adaptable, fitting rear-facing, forward-facing, and highback booster seats comfortably. Its slim design allowed for three-across installations alongside other seats like the Graco SnugRide SnugLock 35 and TurboBooster Highback, while maintaining proper safety spacing and easy belt access.

Some of the test layouts included:

• RF | RF | RF

• FF | FF | FF

• FF | FF | RF

• ICS | FF | FF

• ICS | FF | RF

• HBB | FF | FF

• HBB | FF | RF

2019 Honda Odyssey 3rd Row

In the third row of the 2019 Honda Odyssey, the SlimFit3 LX fit comfortably in multiple configurations, accommodating forward-facing, rear-facing, and highback booster seats. Its narrow profile allowed for easy three-across installations while maintaining proper belt alignment and safety spacing.

• FF | FF | FF
• RF | FF | FF
• HBB | FF | FF
• HBB | FF | RF

2018 Tesla Model 3

In the 2018 Tesla Model 3, the SlimFit3 LX installed securely in both rear-facing and forward-facing positions, though center rear-facing placement was challenging due to limited space. Its slim design allowed for flexible three-across setups while keeping proper harness and seatbelt alignment.

• FF | FF | RF
• FF | RF | FF
• Skinny backless booster | RF | FF
• Skinny backless booster | FF | FF

2015 Nissan Versa

In the 2015 Nissan Versa, the SlimFit3 LX fit well in both rear-facing and forward-facing modes, making it suitable for smaller vehicles. Its compact width allowed for easier three-across seating while maintaining secure installation and proper harness positioning.

• RF | RF | FF
• FF | FF | FF
• RF | FF | FF
• HBB | FF | RF

2014 Honda Odyssey 2nd Row

In the second row of the 2014 Honda Odyssey, the SlimFit3 LX installed smoothly in rear-facing, forward-facing, and highback booster modes. Its slim profile made three-across arrangements manageable, ensuring proper belt alignment and safety spacing for multiple children.

• RF | RF | RF
• FF | FF | FF
• RF | FF | FF
• HBB | FF | RF

2011 Acura MDX

In the 2011 Acura MDX, the SlimFit3 LX fit securely across the second row in rear-facing, forward-facing, and highback booster modes. Its narrow design allowed for easy three-across installation while maintaining proper harness fit and seatbelt alignment.

• RF | RF | RF
• FF | FF | FF
• RF | FF | FF
• HBB | FF | RF

 Fit to Child

• Head support: Rear-facing only; optional depending on child’s comfort and size.
• Body support pad: Rear-facing only; required if shoulders are below lowest harness slot; optional once shoulders exceed lowest slot.
• Harness padding: Required forward-facing for children 22–25 lbs; optional otherwise; ensure chest clip is correctly positioned at armpit level.
• Headrest and backrest pad: Ships in lowest position; placed between harness and buckle for proper seating; not to be folded behind the child.
• Buckle positions: Three available for rear-facing; forward-facing uses the two outer slots for safety.
• Harness height adjustment: 10-position headrest allows growth accommodation from infant to approximately 9 years old.
• Seat depth and width: Designed to fit children comfortably across all ages; seat supports proper posture and hip alignment.
• Padding and cushioning: EPS foam absorbs energy in impacts; removable pads enhance comfort and support.
• 5-point harness: Provides secure restraint in all modes; adjustable to fit different body sizes snugly.
• Seat belt and LATCH compatibility: Works with both seat belt and LATCH installations; ensures fit and security regardless of vehicle type.
• Infant to booster transition: Easy conversion from rear-facing to forward-facing to highback booster; all child supports remain effective.
• Ease of use: Pads and inserts are removable and washable; helps maintain hygiene while ensuring proper fit for each child stage.

COVER/EASE OF USE:

The SlimFit3 LX features a machine-washable Rapid Remove™ cover, making cleanup quick and hassle-free. Parents can easily remove and replace the cover without disassembling the entire seat.

Removable cup holders add convenience and flexibility. They can be taken off when space is tight, especially in three-across installations, or left on for daily use.

The onboard harness storage keeps the 5-point harness neatly tucked away in booster mode. This prevents tangling and simplifies transitions between forward-facing and booster configurations.

Installation is straightforward thanks to wide belt paths and clear level indicators. Seatbelt or LATCH installation is intuitive, and the adjustable recline positions make it easier to fit the seat securely in different vehicles.

FAA-APPROVAL/LIFESPAN/CRASH GUIDELINES:

Here’s a FAA Approval / Lifespan / Crash Guidelines section for SlimFit3 LX:

The SlimFit3 LX is FAA-approved for use on airplanes in rear-facing and forward-facing modes, making it convenient for travel with children. Always follow airline-specific instructions for secure installation.

The car seat has a 10-year lifespan from the date of manufacture. Check the expiration date on the seat, and never use a seat beyond this period to ensure safety standards are maintained.

In crash situations, the SlimFit3 LX features energy-absorbing EPS foam and a steel-reinforced frame to reduce impact forces. Follow the 5-point harness guidelines and proper installation procedures for maximum protection.

Always inspect the car seat after a crash. Graco advises replacing the seat after any moderate or severe collision, even if no visible damage is present, to maintain optimal safety.

SLIMFIT3 LX ADVANTAGES:

• Slim profile: Fits easily in smaller vehicles and allows for 3-across seating.
• 3-in-1 versatility: Functions as rear-facing, forward-facing, and highback booster seat.
• Adjustable harness/headrest: 10-position headrest grows with the child for a proper fit.
• Easy-to-clean cover: Rapid Remove™ cover is machine washable for convenience.
• Energy-absorbing safety features: EPS foam and steel-reinforced frame protect during impacts.
• Onboard harness storage: Simplifies transitions to booster mode and prevents tangling.

SLIMFIT3 LX DISADVANTAGES:

• Center rear-facing placement is tricky: Can be difficult in some vehicles due to limited space.
• LATCH connectors awkward to remove: Requires horizontal pulling, which can be cumbersome.
• Cup holders may interfere: Need to be removed for tight three-across installations.
• Heavier than some slim models: At ~18.8 lbs, can be challenging to move between vehicles.
• Limited anti-rebound feature: Only included on True3Fit LX version, not standard SlimFit3 LX.
• Installation learning curve: Seatbelt installation is preferred for 3-across, which may confuse first-time users.

👉🏻Discover More About Unique Information[ Britax One4Life Slim ClickTight Review ]

Frequently Asked Questions

What ages and weights does the SlimFit3 LX accommodate?

The SlimFit3 LX fits children from 5 lbs rear-facing up to 100 lbs as a highback booster, making it suitable from newborn to around 9 years old.

Is the SlimFit3 LX FAA-approved for airplane travel?

Yes, it is FAA-approved for both rear-facing and forward-facing use on airplanes. Always follow airline instructions for proper installation.

Can three SlimFit3 LX seats fit across a standard back seat?

Yes, the slim 16.5″ width allows for three-across setups in many vehicles, though cup holders may need to be removed for tight fits.

How long is the lifespan of the SlimFit3 LX?

The car seat has a 10-year lifespan from the date of manufacture. Never use a seat beyond this period to ensure safety.

What safety features does the SlimFit3 LX include?

It has energy-absorbing EPS foam, a steel-reinforced frame, multiple recline positions, and a 5-point harness to provide maximum protection in crashes.

Conclusion

The Graco SlimFit 3LX proves to be a reliable and versatile car seat for families with growing children. Its slim design, multiple recline positions, and 3-in-1 functionality make it perfect for tight car spaces and 3-across seating. Parents can enjoy peace of mind with its steel-reinforced frame and energy-absorbing EPS foam.

With easy installation, removable cup holders, and a machine-washable cover, the SlimFit 3LX combines convenience with safety. Its long 10-year lifespan and stylish design make it a practical and attractive choice for modern families looking for comfort, security, and adaptability on the road.
